How to Package Precision Instruments for Export: A Practical Protection Checklist

Introduction

Precision instruments can be damaged without obvious carton failure. Shock, vibration, abrasion, moisture, dust and pressure on controls may affect calibration or cosmetic quality. Export shipments add more handling stages, longer storage periods and uncertain environmental conditions.

This checklist helps equipment manufacturers and packaging buyers design a complete protection system rather than relying on foam thickness alone.

1. Define the Product Risks

Record the instrument’s dimensions, weight, center of gravity and fragile zones. Identify lenses, displays, knobs, connectors, feet and calibrated components. Confirm whether batteries, liquids or detachable accessories introduce special transport rules.

Also define the distribution route: pallet freight, air cargo, parcel networks or repeated field transport. The same instrument may require different packaging depending on how it is handled.

2. Establish a Clear Protection Target

Ask the engineering team whether the product has a known fragility level or maximum allowable shock. If no formal value exists, document the failure modes that testing must detect, such as calibration drift, cracked housings or damaged connectors.

Important: Foam density and thickness should be selected as a system. Very firm foam is not automatically safer because it may transmit more shock to a fragile product.

For material selection principles, read Choosing Foam Density and Thickness for Protective Packaging.

3. Design the Fitted Foam Insert

A fitted cavity should restrain movement while avoiding excessive compression. Allow clearance around displays, switches and other sensitive areas. Use load-bearing zones on stronger parts of the housing and provide finger notches or lifting straps for safe removal.

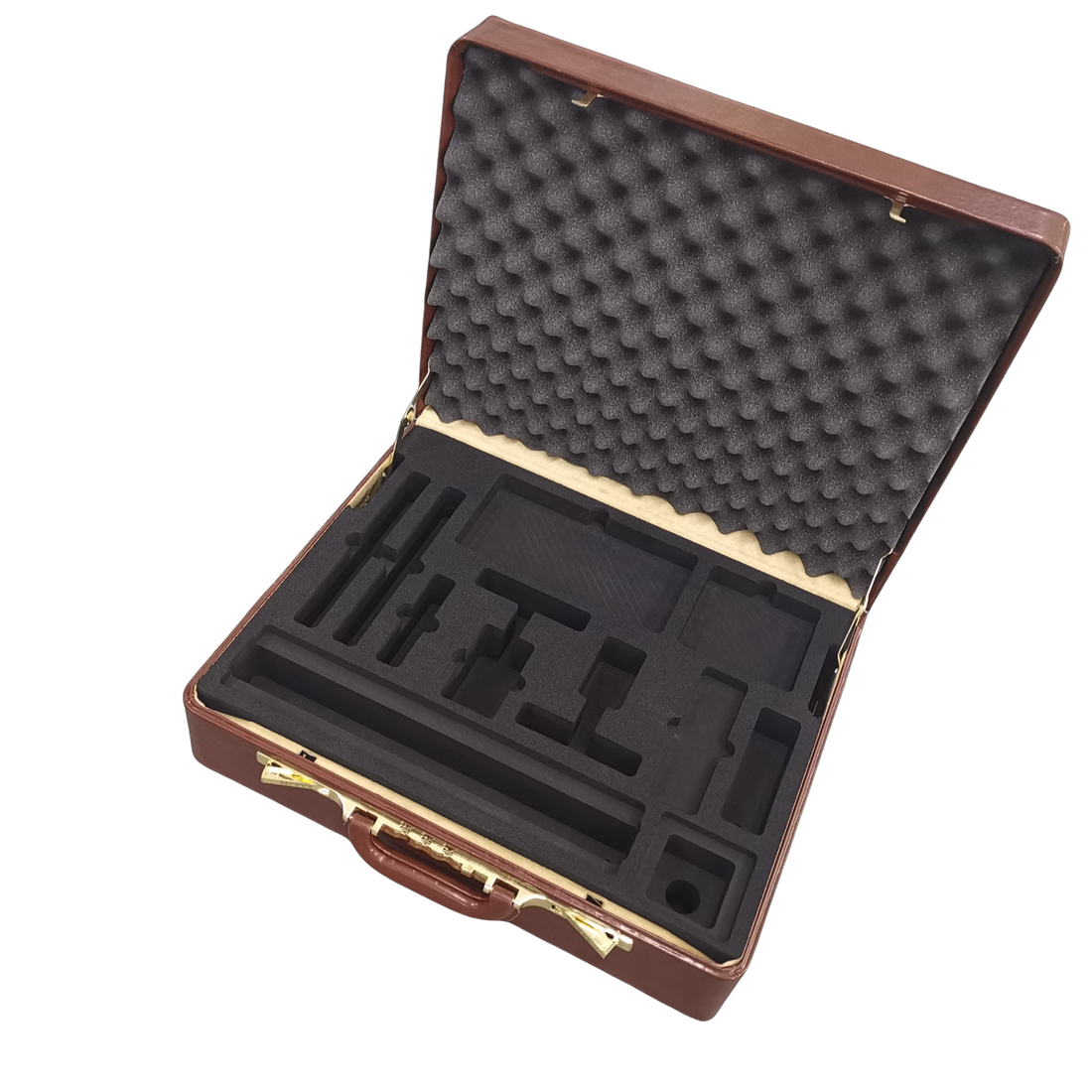

A precision instrument case foam insert can be CNC-cut or assembled from multiple layers to control cavity depth. Depending on the product, EVA inserts provide precision and durability, while EPE foam packaging can provide lightweight cushioning for shipping applications.

4. Secure Accessories Separately

Cables, probes, adapters and manuals should not move freely against the instrument. Give each accessory a dedicated cavity, pocket or restrained compartment. Heavy accessories should be isolated so their movement cannot become an impact source during a drop.

Use a visual packing layout or cavity labels when kit completeness matters. Contrasting foam layers can also make missing items easier to identify.

5. Protect Against Moisture and Contamination

For long export routes, evaluate humidity, condensation and corrosion risk. Depending on the product and storage period, the system may need a sealed bag, desiccant, humidity indicator or corrosion-protection material. Confirm that all materials are compatible with optical surfaces, coatings and sensitive electronics.

Do not claim a package is moisture-proof without defining the barrier material, seal quality and intended exposure conditions.

6. Select the Case and Outer Carton

A reusable carrying case improves field handling, but it may not replace export packaging. The case itself should be immobilized inside a corrugated carton with suitable clearance and cushioning. For heavier loads or demanding routes, double-wall cartons may offer better stacking and puncture resistance than single-wall construction.

Review Single-Wall vs Double-Wall Packaging when specifying the shipping carton.

7. Check Labels and Documentation

• Product and serial-number identification
• Orientation and handling labels where justified
• Accessory and packing lists
• Battery or regulated-goods marks when applicable
• Destination-language instructions and importer requirements
• Material declarations requested by the customer or market

Handling labels support a good package but cannot compensate for inadequate cushioning.

8. Validate the Complete Pack

Test production-representative products, inserts, cases and cartons together. A validation plan may include drops, vibration, compression, climatic conditioning and post-test functional or calibration checks. The appropriate test method and severity depend on product risk and distribution route.

Record sample configuration, test sequence, acceptance criteria and results. If the product or packaging changes, evaluate whether revalidation is required.

Supplier RFQ Checklist

• Instrument CAD, dimensions, weight and fragile areas
• Accessory list and preferred packing sequence
• Shipment method, destination and expected storage duration
• Reusable case and outer-carton requirements
• Surface, cleanliness and moisture-control needs
• Target order quantity and replacement-insert requirements
• Required compliance documents and validation tests

Frequently Asked Questions

Which foam is best for precision instruments?
There is no universal material. Selection depends on product fragility, weight, cavity geometry, reuse cycles and distribution conditions.

Should foam touch the entire instrument?
Not necessarily. Well-designed support zones can restrain the product while keeping pressure away from delicate controls, lenses and connectors.

Can one insert work for several models?
It may be possible with modular cavities, but each model’s fit and protection should be validated.

Is a “Fragile” label enough for export shipping?
No. Labels are supplementary. The package should protect the instrument under the reasonably expected handling environment.

Treat Packaging as Part of the Instrument System

Precision instrument packaging should be designed from measurable risks, not visual appearance alone. A fitted insert, restrained accessories, environmental protection and a validated outer pack work together to reduce damage and preserve product performance.
