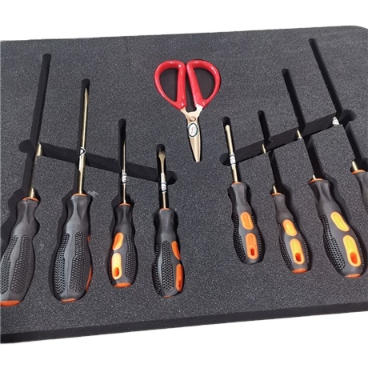

Custom die-cut foam insert holding tools in a case

How to Design Custom Foam Inserts for Packaging: A Buyer's Guide

June 30, 2026

Introduction

A well-designed foam insert keeps your product secure, looks professional, and reduces returns from shipping damage. But good inserts are designed, not guessed. This buyer's guide walks through the key decisions when creating custom foam inserts for packaging.

Start With the Product and the Risks

Before choosing materials, define what you are protecting and how it can fail. Consider weight, fragility, sharp edges, and how the product will be shipped and handled.

Weight & fragility: heavier or more delicate items need more cushioning and a snug fit.
Shipping conditions: drops, vibration, stacking and humidity all influence the design.
Presentation: if customers see the insert, finish and fit matter as much as protection.

Key Design Decisions

Material: EPE for economical, lightweight cushioning; EVA for premium, precise, presentation-grade inserts.
Density & thickness: set the cushioning level and the gap between product and box wall.
Cavity fit: cavities should hold the product snugly without forcing it in or leaving it loose.
Layers: multi-layer inserts can separate components or add top cushioning.

A good insert holds the product firmly, leaves a protective gap to the box wall, and is easy to pack and unpack.

Single vs. Multi-Cavity Inserts

Single-cavity inserts suit one product or kit. Multi-cavity inserts organize multiple items or accessories, improving both protection and the unboxing experience for retail and gift packaging.

Tolerances, Sampling and Prototyping

Small dimensional differences change how an insert fits. A reliable manufacturer confirms tolerances, produces a physical sample, and tests fit before mass production. Always approve a sample first.

Common Mistakes to Avoid

Choosing density by guesswork instead of product weight and fragility.
Making cavities too tight (hard to pack) or too loose (product shifts).
Skipping the sample stage and discovering fit problems after mass production.

Frequently Asked Questions

How long does it take to design and sample a custom foam insert?

It depends on complexity, but a typical flow is design confirmation, a physical sample for approval, then mass production.

Do I need a 3D file or drawing?

It helps, but product dimensions or a sample product are often enough for a manufacturer to design the insert.

Can one insert protect several different items?

Yes. Multi-cavity inserts are designed to hold and separate multiple components in one package.
